- Aluminum Extrusions
1.Made of 6061-T6 aluminum alloy, offering high strength and hardness.
2.Treated with solution heat treatment and artificial aging, ensuring stable internal structure and excellent mechanical properties.
3.Strict tolerance control and high-dimensional accuracy, suitable for precision equipment assembly.
4.Supports secondary processing such as cutting and drilling, adaptable to complex structural designs.
High strength and toughness. Lightweight while capable of bearing significant loads and impacts, ensuring strong structural stability.
High-precision dimensional control ensures accurate component fit, easy installation, and strong compatibility.
High strength and toughness. Lightweight while capable of bearing significant loads and impacts, ensuring strong structural stability.
Manufactured strictly in accordance with GB/T 6892 standards, ensuring high material consistency and reliability, suitable for industrial and construction applications with high strength requirements.
|
Item |
Specification / Description |
|
Material |
6061-T6 Aluminum Alloy |
|
Density |
Approx. 2.7 g/cm³ |
|
Tensile Strength |
≥ 260 MPa |
|
Yield Strength |
≥ 240 MPa |
|
Elongation |
≥ 7% |
|
Hardness |
≥ 15 HW |
|
Surface Finish |
Mill finish (supports secondary treatments such as coating) |
|
Length Range |
Customizable (e.g. 3 m / 6 m) |
|
Machinability |
Cutting, drilling, and other secondary processing |
|
Tolerance |
Section width (-0.2 to -0.7 mm), |
|
Straightness |
≤ 1 mm/m (total length accumulation) |
|
Twist |
≤ 1 mm/m (total length accumulation) |
|
Element |
Test Result (%) |
6061 Standard Requirement (%) |
|
Si (Silicon) |
0.65 |
0.4 – 0.8 |
|
Fe (Iron) |
0.33 |
≤0.7 |
|
Cu (Copper) |
0.19 |
0.15 – 0.4 |
|
Mn (Manganese) |
0.046 |
≤0.15 |
|
Mg (Magnesium) |
1.14 |
0.8 – 1.2 |
|
Cr (Chromium) |
0.094 |
0.04 – 0.35 |
|
Zn (Zinc) |
0.024 |
≤0.25 |
|
Ti (Titanium) |
0.02 |
≤0.15 |
|
Al (Aluminum) |
Balance |
Balance |
This product range consists of 6061-T6 aluminum extrusions for aluminum formwork systems, manufactured in accordance with GB/T 6892 standards with strict control of alloy quality and dimensional accuracy.

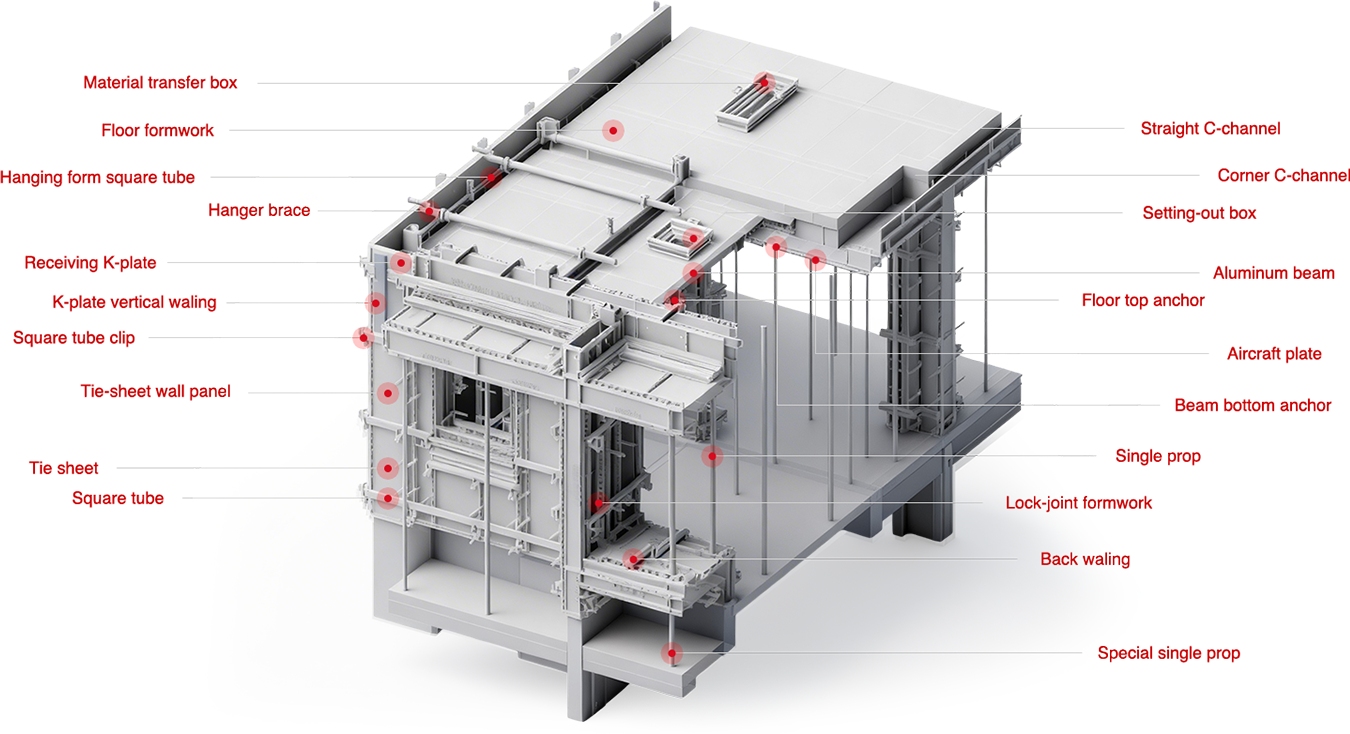

The extrusions include wall and slab extrusions, U-shaped extrusions, end board (edge) extrusions, beam side and beam bottom extrusions, staircase extrusions (treads, risers, stringers), internal and external corner extrusions, curved and radius extrusions, filler extrusions, balcony and parapet extrusions, as well as custom non-standard aluminum extrusions for project-specific requirements.
All aluminum extrusions are produced through one-piece precision extrusion, integrating ribs and connection features directly into the section. After extrusion, solution heat treatment and artificial aging to T6 temper are applied to ensure high strength, stiffness, and long-term dimensional stability. Secondary processing such as cutting and drilling, is supported, making the extrusions suitable for repetitive, high-accuracy concrete construction using aluminum formwork systems.

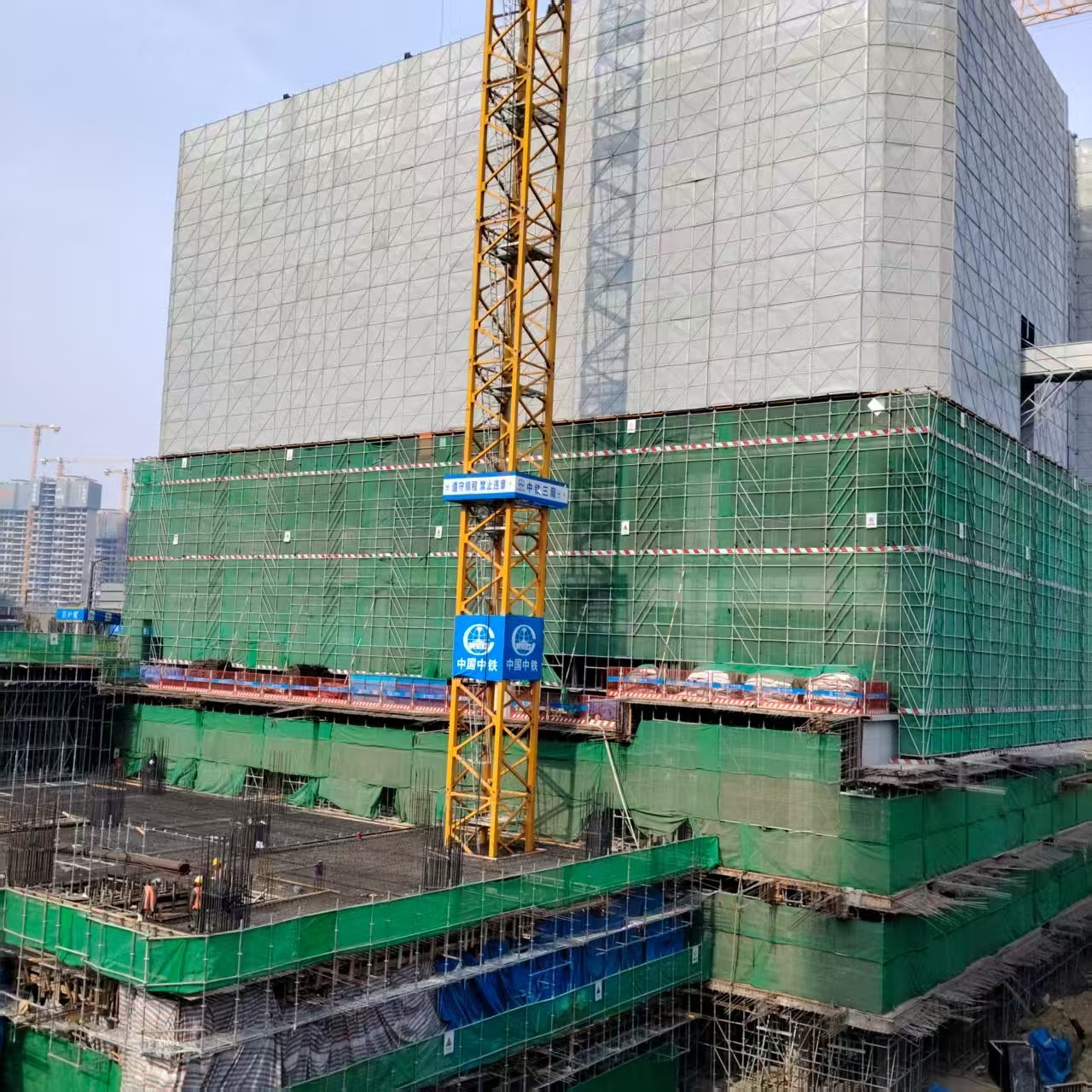

exceptional dimensional consistency, and stable structural performance across repetitive layouts. Its systemized design minimizes cumulative errors, reduces rework, and supports high-efficiency vertical construction under tight schedules.
Aluminum formwork in hotel construction ensures high load-bearing reliability, precise geometry control, and uniform concrete finishes across complex structural zones. The system addresses key hospitality project pain points such as schedule pressure, quality consistency, and architectural tolerance demands in multi-floor commercial buildings.
Aluminum formwork in villa construction enables high-precision wall, slab, and beam casting with clean, architectural-grade concrete surfaces. Its modular flexibility effectively handles irregular layouts and customized designs while maintaining construction efficiency and dimensional accuracy in low-rise residential projects.
Aluminum formwork used in basement construction enables precise casting of slabs, beams, and columns with high dimensional accuracy and smooth concrete finishes. The rigid, systemized panels effectively control deformation under high concrete pressure, addressing common basement pain points such as misalignment, surface defects, slow cycle times, and labor-intensive rework in confined underground environments.

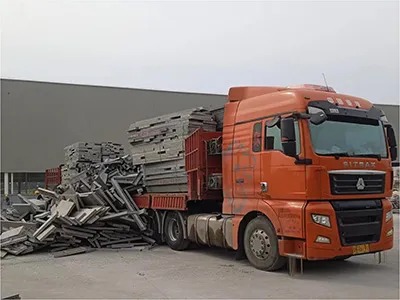

1Recovered aluminum materials are collected and prepared for remelting.

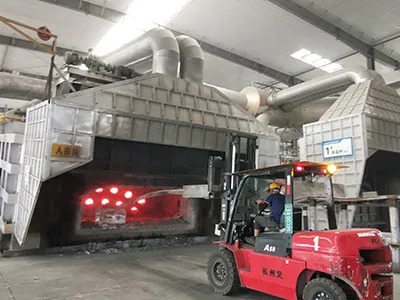

2Recycled aluminum is melted under controlled conditions to ensure chemical consistency.

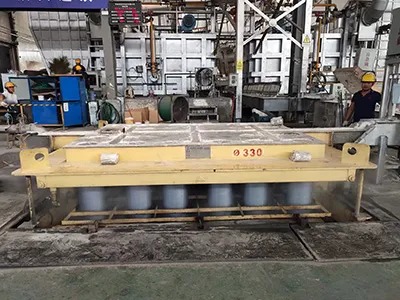

3Molten aluminum is cast into solid billets with precise dimensional control.

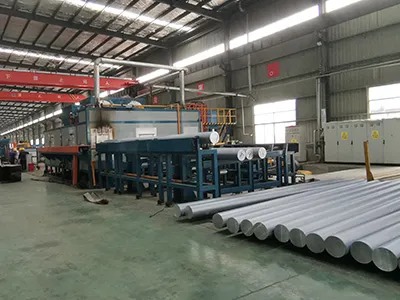

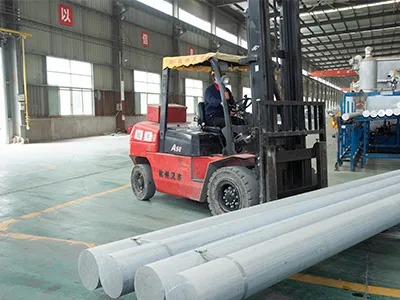

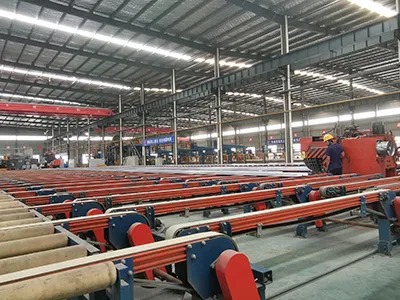

4Finished billets are transferred to the extrusion line for downstream processing.

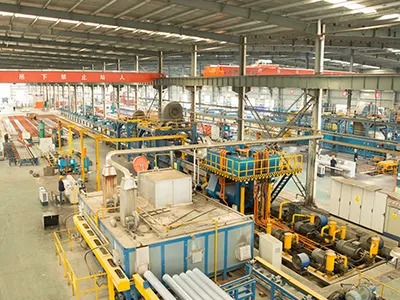

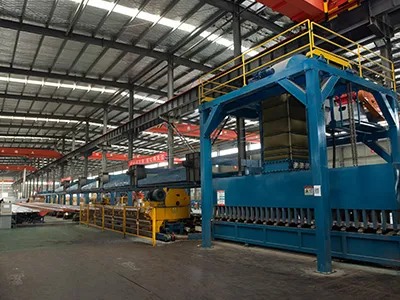

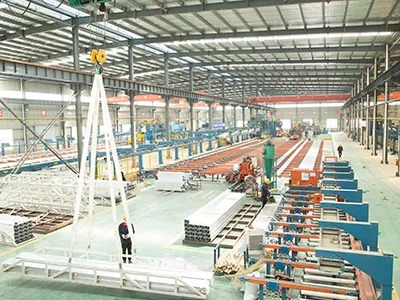

5Automated extrusion lines are prepared for continuous, high-capacity production.
6Aluminum billets are uniformly heated to optimal extrusion temperature.

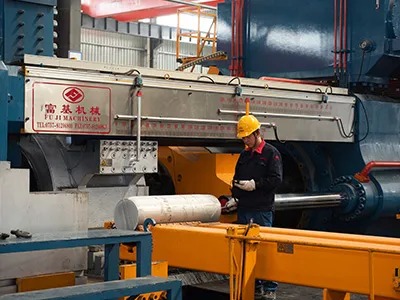

7Billets are positioned and aligned for stable, high-pressure extrusion.

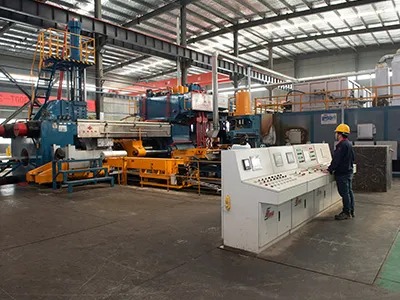

8Heated billets are extruded through precision dies to form required profiles.
9Extruded profiles are rapidly cooled to stabilize shape and dimensions.
10Profiles are mechanically aligned to eliminate distortion and internal stress.
11Profiles are cut to specified lengths with tight tolerance control.

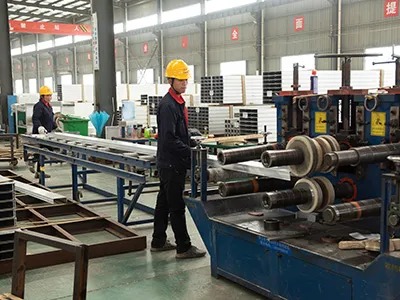

12Secondary forming and machining ensure dimensional accuracy and interface fit.

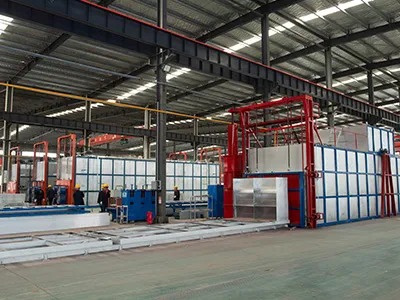

13Profiles undergo controlled aging to achieve required mechanical properties.

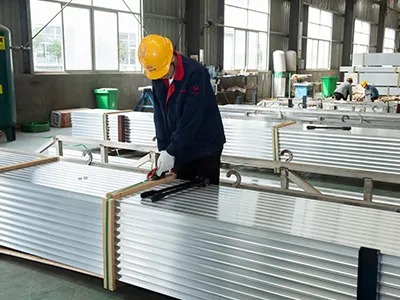

Finished products are inspected, bundled, and packaged for protection.

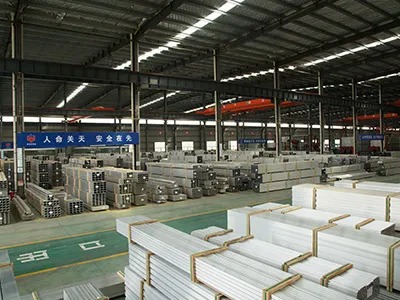

Profiles are stored in organized inventory for efficient order fulfillment.

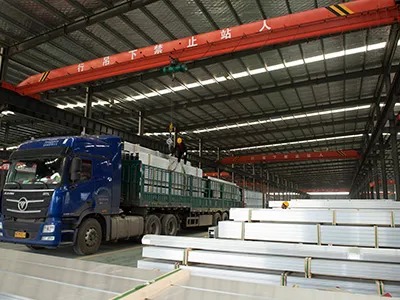

Packaged products are loaded and shipped for domestic and international delivery.
1Complete system drawings, assembly layouts, and installation manuals are provided to ensure accurate on-site execution.
2Remote technical support and on-site guidance (when required) for formwork assembly, pouring sequence, and dismantling procedures.
3Assistance with dimensional checks, tolerance verification, and troubleshooting during initial pours to ensure system performance.
4Timely supply of replacement panels and accessories, with optimization suggestions based on actual site feedback.
| Category | Aluminum Formwork | Steel Formwork | Timber Formwork |
|---|---|---|---|
| Structural Strength | High | Very high | Low |
| Self-Weight | Low | Very high | Low |
| Dimensional Accuracy | High | Moderate | Low |
| Reuse Cycles | Very high | High | Low |
| Installation Efficiency | High | Low | Moderate |
| Labor Requirement | Low | High | Moderate |
| Concrete Finish Quality | High | Moderate | Low |
| Adaptability (Non-standard / Curved) | High | Low | Moderate |
| Initial Cost | High | High | Low |
| Life-Cycle Cost | Low | High | High |
| Site Safety | High | Moderate | Low |
| Environmental Impact | Low | Moderate | High |
| Suitability for Repetitive Housing | Very high | Low | Low |
This section addresses the most common inquiries to help you find answers quickly. If you don't see your question listed, please feel free to contact us.
6061-T6 aluminum extrusions are commonly used in aluminum formwork systems, industrial frames, automation equipment, and structural construction due to their high strength, corrosion resistance, and excellent machinability.
6061-T6 provides a superior balance of strength, toughness, and workability. It delivers higher structural reliability and longer service life compared with lower-grade alloys, making it ideal for load-bearing and repetitive-use applications.
T6 temper indicates solution heat treatment followed by artificial aging, significantly increasing tensile strength, yield strength, and dimensional stability of the aluminum extrusion.
Yes. Length, cross-section, reinforcement structure, and secondary processing such as cutting or drilling can be customized to meet specific project requirements.
The product is manufactured in strict accordance with GB/T 6892-2023, GB/T 14846-2014, and GB/T 5237.1-2017, ensuring consistent material quality, mechanical performance, and dimensional accuracy.
