- Fastening System
1.High-strength carbon steel components engineered for repetitive concrete pouring cycles.
2.Precision-manufactured interfaces ensuring tight fit with aluminum formwork panels.
3.Optimized load transfer for wall, slab, and beam formwork applications.
4.Standardized geometry compatible with mainstream aluminum formwork systems.
5.Surface-treated for corrosion resistance under harsh jobsite conditions.
Ensures accurate wall thickness control and stable formwork alignment under fresh concrete pressure.
Fully compatible with flat-tie aluminum formwork systems and modular reinforcement layouts.
Simple locking mechanisms reduce labor time and improve site efficiency.
Designed for hundreds of reuse cycles with minimal deformation.
|
Component |
Function |
Typical Specification |
Material |
Surface Treatment |
Weight |
|
Flat Tie |
Wall thickness control |
Standard wall sizes |
Carbon steel |
Galvanized / Black |
0.07–0.23 kg/pc |
|
Tie Rod |
Tensile load resistance |
M12 / M16 / Custom |
High-strength steel |
Galvanized |
0.89 - 1.58 kg/m |
|
Wedges & Pins |
Panel locking and fixation |
Standard system size |
Carbon steel |
Heat-treated |
0.12–0.23 kg/set |
|
Square Steel Tube |
Structural reinforcement |
40×40 / 50×50 / Custom |
Structural steel |
Painted / Galvanized |
Project-dependent |
|
Steel Waler |
Load distribution and stiffening |
Matching formwork span |
Structural steel |
Painted / Galvanized |
Project-dependent |
|
Square Tube Clamp |
Connection of steel members |
Standard clamp size |
Cast / forged steel |
Galvanized |
Project-dependent |
Fastening steel accessories are critical structural components in aluminum formwork systems. They are responsible for load bearing, spacing control, reinforcement, and overall system stability during concrete pouring. This product range includes flat ties and tie rods for wall thickness control, wedges and pins for quick locking, Square Steel Tubes and Steel Walers for structural reinforcement, and Square Tube Clamps for secure connection of reinforcement members.
Flat ties and tie rods resist lateral pressure generated by fresh concrete and ensure consistent wall dimensions. Wedges and pins enable fast, tool-free locking between panels and accessories, significantly improving installation efficiency. Square Steel Tubes and Steel Walers act as primary reinforcement members, distributing loads evenly and preventing panel deformation. Square Tube Clamps provide firm and reliable connections between steel members, maintaining overall system integrity throughout the pouring process.
Manufactured from high-quality structural steel with controlled tolerances, these accessories are suitable for high-rise residential, commercial, and infrastructure projects. Their reliability, durability, and standardization make them essential for achieving fast construction cycles, consistent concrete quality, and predictable project performance in modern aluminum formwork applications.
exceptional dimensional consistency, and stable structural performance across repetitive layouts. Its systemized design minimizes cumulative errors, reduces rework, and supports high-efficiency vertical construction under tight schedules.
Aluminum formwork in hotel construction ensures high load-bearing reliability, precise geometry control, and uniform concrete finishes across complex structural zones. The system addresses key hospitality project pain points such as schedule pressure, quality consistency, and architectural tolerance demands in multi-floor commercial buildings.
Aluminum formwork in villa construction enables high-precision wall, slab, and beam casting with clean, architectural-grade concrete surfaces. Its modular flexibility effectively handles irregular layouts and customized designs while maintaining construction efficiency and dimensional accuracy in low-rise residential projects.
Aluminum formwork used in basement construction enables precise casting of slabs, beams, and columns with high dimensional accuracy and smooth concrete finishes. The rigid, systemized panels effectively control deformation under high concrete pressure, addressing common basement pain points such as misalignment, surface defects, slow cycle times, and labor-intensive rework in confined underground environments.

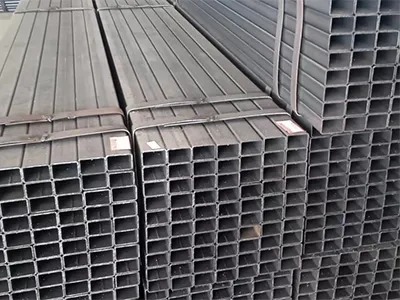

Structural steel sections are inspected and staged for processing.

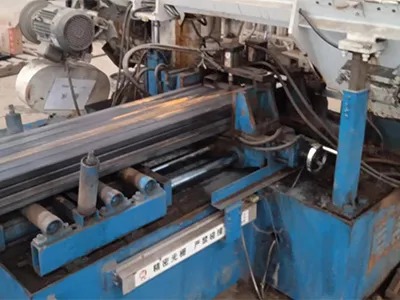

Steel members are cut to rough length to prepare for precision machining.

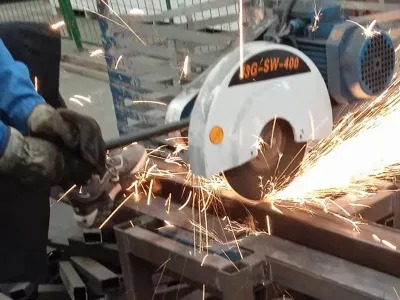

Components are cut to final dimensions with controlled tolerances.

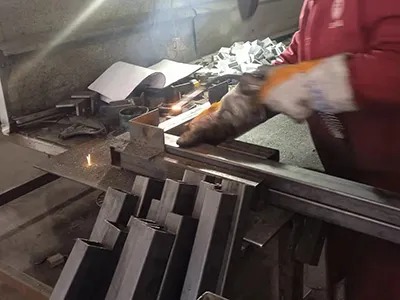

Key joints and connection points are welded to ensure load-bearing performance.

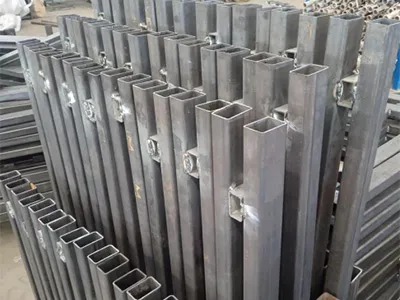

Welded components are assembled and staged for surface treatment.

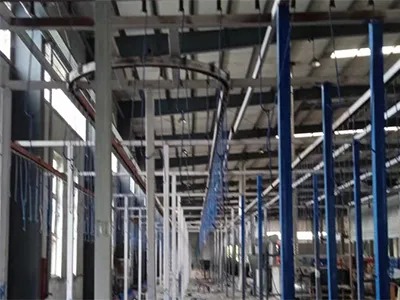

Protective coatings are applied to enhance corrosion resistance and durability.
Products are packed according to their type and weight to ensure safe handling and transportation. Small accessories such as flat ties, wedges, and pins are packed in woven bags or cartons, while heavier components are palletized and steel-strapped. All shipments are clearly labeled for easy identification and loading. Container loading follows standardized procedures to maximize space utilization and prevent movement during transit.
Panels are palletized, shrink-wrapped, and reinforced to prevent damage, deformation, and moisture exposure during transport.
Packaged formwork is labeled, staged for loading, and dispatched for container shipment according to delivery schedules.
1Technical support for accessory selection and system matching
2Guidance on correct installation and usage on site
3Assistance with dimensional checks, tolerance verification, and troubleshooting during initial pours to ensure system performance.
4Timely supply of replacement panels and accessories, with optimization suggestions based on actual site feedback.
This section addresses the most common inquiries to help you find answers quickly. If you don't see your question listed, please feel free to contact us.
For standard adjustable steel props used in aluminum formwork, the safe working load typically ranges from 20–30 kN per prop, depending on extension height and installation condition. Capacity decreases as height increases. Final load must follow project-specific shoring design.
Height is adjusted via threaded collar or pin-lock mechanism, allowing fine adjustment within millimeter-level tolerance to meet slab elevation requirements before pouring.
Diagonal bracing is required for tall props, cantilever slabs, balcony edges, wall support, or any condition with lateral instability risk. For low-height slab support, bracing depends on local safety codes and layout design.
Under normal site conditions and proper handling, steel props and accessories are designed for 300+ reuse cycles. Actual lifespan depends on load discipline, surface protection, and maintenance.
Yes. Dimensions and interfaces follow mainstream aluminum formwork standards, making them compatible with most beam–slab aluminum formwork systems using standard prop heads and walers.
